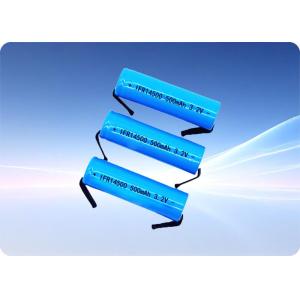

3.2V 500mAh LiFePo4 Rechargeable Battery 14500 1.5A Discharge

Brand Name : OiD

Model Number : IFR14500N5A1.5

Certification : Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards.

Place of Origin : China

MOQ : 100pcs

Price : $0.5 ~ $100.0 / pcs

Delivery Time : 3 ~ 7 days for storage

Payment Terms : TT,L/C,Western Union

Name : 3.2 V 500mAh Rechargeable Battery

ODM : Free custom design for packs

Battery Type : 500mAh Rechargeable

Superior Safety & Stability : Safe LiFePo4 Chemistry

Exceptional Lifespan : 2000+ cycles

High-Temperature Resistance : -20°C to 60°C

Eco-Friendly & Non-Toxic : Cobalt-free chemistry, non-hazardous materials

Cost-Effective Long-Term Value : Lower total ownership cost

Contact Now

IFR14500N5A1.5 LiFePo4 Battery 3.2V 500mAh 1.5A Discharge 2000+ Cycles

Product Name

IFR14500N5A1.5 LiFePo4 Battery Cell

Advantages

Compact High-Current Output: Supports up to 1.5A (3C) continuous discharge for lightweight applications.
Long Cycle Life: 2000+ cycles with ≥80% capacity retention.
Ultra-Lightweight: Minimal weight (15.6g) for portable and space-sensitive devices.
Safe LiFePo4 Chemistry: Inherent stability with low thermal runaway risk.
Balanced Charging: 0.5C (250mA) rated charge capability.

Specifications

Parameter	Value
Model	IFR14500N5A1.5
Nominal Voltage	3.2V
Nominal Capacity	500mAh
Energy	1.6Wh
Internal Resistance	≤60mΩ
Max Continuous Charge Current	250mA (0.5C)
Max Continuous Discharge Current	1500mA (3C)
Charging Voltage	3.65V
Discharge Cut-off Voltage	2.0V
Weight	15.6g
Dimensions (Diameter × Height)	14.25mm × 49mm

Cycle Life

Cycles	Capacity Retention	Test Conditions
1000 cycles	≥90%	0.5C Charge/Discharge, 25°C
2000 cycles	≥80%	0.5C Charge/Discharge, 25°C

Operating Temperature Range

Mode	Temperature Range	Max Current (Charge/Discharge)
Charging	0°C to 45°C	250mA (0.5C)
Discharging	-20°C to 60°C	1500mA (3C)

Discharge Curve

3.2V 500mAh LiFePo4 Rechargeable Battery 14500 1.5A Discharge

Certifications

Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards.

Key Features

Miniature Design: Compact 14500 size (14.25mm × 49mm) for ultra-portable applications.
Low Self-Discharge: <3% monthly loss for reliable long-term storage.
Universal Compatibility: Fits standard 14500 battery holders.

Applications

Miniature Electronics: LED flashlights, laser pointers, and digital stylus pens.
Medical Devices: Wearable health monitors, hearing aid accessories.
IoT & Sensors: Low-power wireless sensors and smart home devices.
Toys & Hobbies: Miniature RC cars, drones, and model train batteries.
Emergency Backup: Keychain power banks and portable USB chargers.

3.2V 500mAh LiFePo4 Rechargeable Battery 14500 1.5A Discharge

Usage Warnings & Precautions

⚠️ Do NOT charge above 45°C or discharge below -20°C to prevent irreversible damage.
Use only LiFePo4-compatible chargers with 3.65V voltage limits.
Avoid terminal short circuits, physical impacts, or exposure to moisture.
Ensure proper polarity alignment during installation.

Storage Guidelines

Optimal Storage SOC: 30%-50% (2.8V-3.3V per cell).
Storage Temperature: -10°C to 35°C (dry, non-condensing environment).
Recharge Interval: Every 6 months for batteries stored long-term.

Warranty & Disclaimer

Warranty: 24-month limited warranty against manufacturing defects.
Disclaimer: Warranty void if misused (e.g., overcurrent, extreme temperatures). Dispose per local regulations.
